CJ40A02

产品特点:立式矩形金属外壳,全密封结构,防潮性好,耐冲击,电性能稳定可靠,具有良好的自愈性等特点。
产品用途:本产品用于无线电通讯设备或各种电子设备的直流或脉动电路中。
Product Characteristic:Vertical rectangular metal outer covering,entire seal structure,moisture-resistance good,bears the impact stably,the electricity performance is reliable,has good from and so on the characteristic.
Product use:This product used in the wireless communication equipment either ineach kind of electronic installation direct current or the pulsation electric circuit.

主要性能指标 Specifications

项目 Item
技术指标 Technical specification
使用温度
Operating temperature
-55℃ ~ +70℃
电容偏差
Capacitance tolerance
J(±5%), K(±10%)
损耗角
Dissipation Factor
≤0.015 (≤0.004)
耐电压
Standing Voltage
两引出端间能承受1.5倍额定电压1分钟,无闪络或击穿;
引出端与外壳间能承受50Hz交流电压:
a,额定电压≤630V的为750V;
b,额定电压>630V的为1.2倍额定电压1分钟,无飞弧或击穿
Between the two leads-to withstand 1.5 times the rated voltage a minute,no flashover or breakdown;
Leads to end with the shell can withstand between between 50Hz AC voltage:
a,Rated voltage≤630V is 750V;
b,Rated voltage >630V is 12.times of rated voltage 1 minute,no arcing or breakdown;
绝缘电阻
Insulation Resistance
(温度为+20℃时)两引出端间的绝缘电阻应不小于下表规定:
引出端与外壳间的绝缘电阻应不小于5KM Ω。
(When Temperature at 20℃)The insulation resistance between the two leads no less than the below provision:
Leads to haed with shell of insulation resistance no less than 5KM Ω.

标称容量(μF)
Capacitance Range(μF)

 绝缘电阻 Insulation resistance
 160V  250v  ≥400V
 ≤0.1      5000MΩ

 ≥0.22

 200S  500S  1000S
 ≥10  200S  500S  1000S

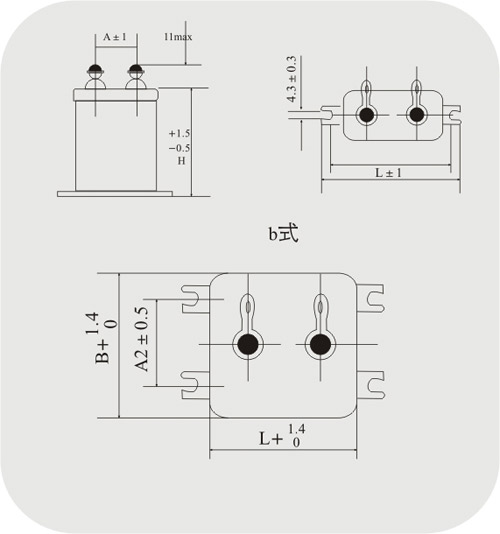

产品结构图 Product Structure Drawing

壳号及尺寸对照表 Case Number and dimension
壳号
Case No.(#)
高(H)
宽(L)
厚(B)
壳号
Case No.(#)
高(H)
宽(L)
厚(B)
1
25
31
11
6
50
46
11
2
16
7
16
3
21
8
21
4
26
9
26
5
31
10
31
18
115
69
86
11
41
19
34
12
46
20
47
13
51
21
64
14
56
22
107
15
61
23
130
69
107
16
66




17
79


标准产品外形尺寸(mm
Case dimension of Standard Products(mm)

额定电压(V)
Rated Voltage(V)

标称容量(μF)
Capacitance Range(μF)
160
250
400
630

 1000

1600

0.10



1

7

7

0.22


1
2

7

7

0.47

1
2
4

7

9

1
1
2
4
7

9

12

2
2
4
7
9

13

17

4
4
7
7
13

18

19

10

8

8

10

18

20

21

15

9

10

12







20

10

10

14







25

11

14









30

14

14
