CD60C TYPE ALUMINUM ELECTROLYTIC CAPACITOR SEALED IN ALUMINIUM CASE, L type single pin FOR CONNECTIONS, DIFFERENT COLOURS OF PVC SLEEVE INSULATED FOR BUYER SELECTING.THE PRODUCTION CAN BE DESIGNED AND MADE ACCORDING TO OUR CUSTOMER’S SPECIAL DESIRES.

General Specifications:

(Operating Temperature )	-40～+55℃
(Voltage Range )	250VAC 450VAC
(Capacitance Range)	50～500µF
（Capacitance Tolerance）	0~+20%

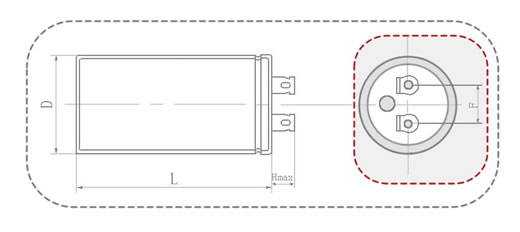

Overall and Installation dimension

NOMINAL CAPACITANCE RATED VOLTAGE AND CASE SIZE TABLE

U_R（VAC） D×L（mm） C_R（µF）	250VAC	450VAC
50µF	42×80	42×80
75µF	42×80	42×80
100µF	42×80	42×80
150µF	50×100	50×100
200µF	50×100	50×100
250µF	50×100	50×100
300µF	50×100	50×100
350µF	50×100	50×100
400µF	50×100	50×100
500µF	50×100	50×100
