CD60A01


CD60 Series capacitors are developed and researched according to standard of American Electronics Association (ANSI/EIA-463).The external case of the capacitor is made of bakelite plasticized that its character are not only good insulating resistance and strong resistance damaged but also protecting electro-liquid as good sealed feature. It is popular used for the super AC application as good life, higher degree of reliability and stability.

General Specifications:



(Operating Temperature )
-40~+65℃
(Voltage Range )
110~330VAC
(Capacitance Range)
21~1536µF
Capacitance Tolerance
0~+20%
(Dissipation Factor)tgδ
tgδ≤ 0.10   tgδ≤0.15(20℃,100Hz)
(Load Life)

According to the diffirence working Voltage and capacitance,alternation
0.5-4 minutes turn on 1 time for second.
12500~50000times,According to the ANSI/ EIA-463-B Standard.

Surger Voltage Between Lugs(VAC)

Applying 1.25 times Rated Voltage for seconds.

Surger Voltage Between Lug and Case(VAC)

2000VAC  10seconds non-broken down. non-Explosion

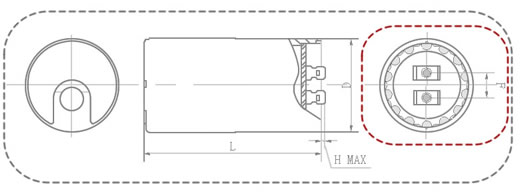

Overall and Installation dimension

D
36.5

 46.02

 52.37

 65.50

L
69.85-111.12

 85.72-111.12

 85.72-111.12

 111.12

F
12.70

 15.88

 22.22

 22.22

Hmax
1.50

 1.50

 1.50

 1.5

 Case Number and dimension

壳号
Case No.(#)
毫米尺寸
D×L(mm)
英制尺寸
D×L(inch)
壳号
Case No.(#)
公制尺寸
D×L(mm)
英制尺寸
D×L(inch)
1
36.50×69.85
1.437×69.85

5

46.02×111.12

1.812×4.365
2
36.50×85.72
1.437×3.365

6

52.37×85.72

2.062×3.365
3
36.50×111.12
1.437×4.365

7

52.37×111.12

2.062×4.365

4

46.02×85.72

1.812×3.365

8

65.50×111.12

2.562×4.365




UR(VAC)
CASE(#)
CR(µF)
110VAC
125VAC
165VAC
220VAC

 250VAC

330VAC

21-25µF

1

1

1

1

1

2

25-30µF

1

1

1

1

1

2

30-36µF

1

1

1

1

2

4

36-43µF

1

1

1

1

2

4

43-52µF

1

1

1

2

2

4

47-56µF

1

1

1

2

2

4

53-64µF

1

1

1

2

4

5

64-77µF

1

1

1

4

4

5

72-86µF

1

1

1

4

4

5

88-106µF

1

1

2

4

5

7

108-130µF

1

1

2

4

5

8

124-149µF

1

1

2

5

5

8

130-156µF

1

1

4

5

5

8

145-174µF

1

1

4

7

7

8

161-193µF

1

1

4

7

7

8

189-227µF

1

2

4

7

8

8

216-259µF

2

2

4

8

8

8

233-280µF

2

2

5

8

8

8

243-292µF

2

3

5

8

8

8

270-324µF

2

3

5

8

8

8

324-389µF

3

4

7

8

8



340-408µF

4

4

7

8

8



378-454µF

4

4

7

8

8



400-480µF

4

4

7

8

8



430-516µF

4

4

8

8

8



460-552µF

4

4

8







540-648µF

5

5

8







590-708µF

5

5

8







645-774µF

7

7

8







708-850µF

7

7

8







720-864µF

7

7

8







800-960µF

7

7

8







815-978µF

7

8

8







829-995µF

8

8

8







 850-1020µF

8

8

8







 1020-1224µF

8

8









 1175-1410µF

8

8









 1280-1536µF

8
