CD13A01


Load life of 2000 hours at +85℃



   Specifications

Item
Characteristics
Operating temperature range(℃)
-25~+105
Rated voltage range(V)
160~450
Nominal capacitance range(μF)
270~39000
Capacitance tolerance(%)
±20(20℃,120Hz)
Leakage current
I≤0.01CRUR (μA) or 5mA(Whichever is smaller)
Dissipation factor(tgδ)
 UR (V)
160~250
350~450
tg δ(max.)
0.25
0.20
(20℃,120Hz)
Load life(+85℃)
 time
2000小时2000 hours
Capacitance change
Within±15% of the initial value
Leakage current
Not more than the Initial specified value
Dissipation factor
Not more than 175% of the Initial specified value
Shelf life(+85℃)
 time
500 hours
Capacitance change
Within±15% of the initial value
Leakage current
Not more than the Initial specified value
Dissipation factor
Not more than 175% of the Initial specified value

After test: UR to be applied for 30 minutes, 24 to 48 hours before measurement.

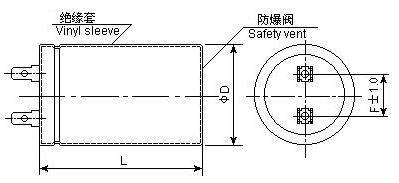

  Case size table



  (mm)

D+2.0
25
35
L+3.0
60,70,80
60,70,80,100
F±1.0
10
14


Ripple current correction coefficient

Temperature(℃)
40
60
70
85
Frequency(Hz)
50/60
120
300
1K
≥10K
Correction coefficient
1.0
0.75
0.62
0.37
Correction coefficient
0.7
1.0
1.1
1.3
1.4


 Nominal capacitance, rated voltage, rated ripple current and case size table

UR(V)
160(2C)
200(2D)
250(2E)
350(2V)
400(2G)
450(2W)
CR(μF)
φD×L(mm)
I(A)*
φD×L(mm)
I(A)
φD×L(mm)
I(A)
φD×L(mm)
I(A)
φD×L(mm)
I(A)
φD×L(mm)
I(A)
270
(271)










φ36×53
3.7
330
(331)








φ36×53
4.1
φ36×83
4.9
390
(391)






φ36×53
4.5
φ36×83
5.3
φ36×83
5.3
470
(471)






φ36×83
5.8
φ36×83
5.8
φ36×83
5.6
560
(561)






φ36×83
6.4
φ36×83
6.4
φ36×100
6.9
680
(681)






φ36×83
7.0
φ36×100
7.6
φ36×100
7.6
820
(821)






φ36×100
8.3
φ36×100
8.3
φ51×75
8.6
1000
(102)






φ51×75
9.2
φ51×75
9.4
φ51×75
9.4
1200
(122)






φ51×75
10.3
φ51×75
10.3
φ51×96
11.4
1500
(152)




φ36×100
8.7
φ51×96
11.5
φ51×96
12.7
φ51×115
13.7
1800
(182)




φ36×100
9.5
φ51×96
13.9
φ51×96
13.9
φ51×130
15.8
2200
(222)


φ36×100
10.6
φ51×75
10.8
φ51×130
15.4
φ51×115
17.4
φ64×96
17.0
2700
(272)


φ36×121
12.7
φ51×75
12.0
φ51×130
19.3
φ51×130
18.8
φ64×115
20.2
3300
(332)
φ36×121
14.0
φ51×75
13.3
φ51×96
14.6
φ64×115
21.4
φ64×115
22.2
φ64×130
23.4
3900
(392)
φ51×75
14.4
φ51×75
14.4
φ51×115
17.0
φ64×130
24.2
φ64×130
25.4
φ77×115
25.6
4700
(472)
φ51×75
15.8
φ51×96
17.4
φ64×96
19.2
φ65×120
27.9
φ64×130
28.2
φ77×130
29.4
5600
(562)
φ51×96
19.0
φ51×115
20.4
φ64×96
21.0
φ77×115
30.7
φ77×130
32.2
φ77×155
34.6
6800
(682)
φ51×96
21.0
φ51×130
23.7
φ64×115
24.7
φ77×155
35.4
φ77×155
38.0
φ90×157
40.5
8200
(822)
φ51×115
24.7
φ64×96
25.4
φ64×115
27.1
φ77×155
41.7
φ90×157
44.4
φ90×157
44.6
10000
(103)
φ64×96
28.0
φ64×96
28.0
φ64×130
31.5
φ90×157
49.0
φ90×157
49.4
φ90×196
53.9
12000
(123)
φ64×96
30.6
φ77×96
32.6
φ77×115
34.8
φ90×157
54.1
φ90×196
59.1
φ90×236
63.8
15000
(150)
φ64×130
38.6
φ77×96
39.0
φ77×130
40.8
φ90×196
66.2
φ90×236
71.1


18000
(183)
φ64×130
42.2
φ77×130
44.6
φ77×155
47.8
φ90×236
77.9




22000
(223)
φ77×130
49.4
φ77×155
53.0
φ90×157
56.5






27000
(273)
φ77×130
54.7
φ90×131
58.2








33000
(333)
φ90×131
64.2
φ90×157
69.0








39000
(393)
φ90×157
75.3












*Max ripple current ( 40℃,120Hz)
