Advantages:Very Advantages:Very small dissipation factor, small volume, light weight, small inherent temperature rise, excellent self-healing stability, safety and high reliability.It is safe because the capacitor is installed with discharge resistor and temperature fuze.
| Product Model: | CBB80D |
| Product Name: | Lighting capacitor CBB80D02 |
|
Description: |
Model reference:CBB80D Rated Voltage:250Vac Rated Frequency:50/60Hz Rated Capacitance:3uF to 16uF Capacitance tolerance:+/-10% or +/-5% (upon request.) Rated Min.&Max. temperatures: -40~+85 degrees Climatic category:40/85/21 Protection Degree:P0 Dissipation Factor:less than 0.002 at 50Hz,20 degrees Test Voltage between terminals:2Un,60sec Test Voltage between terminals and case: 2KV,60sec Reference Standard: EN61048,EN61049 Case type: Platic case Terminals:2 wire Fixing: M8 metal stud |
Capacitance(μF)
Rated voltage(V)
Frequency(Hz)

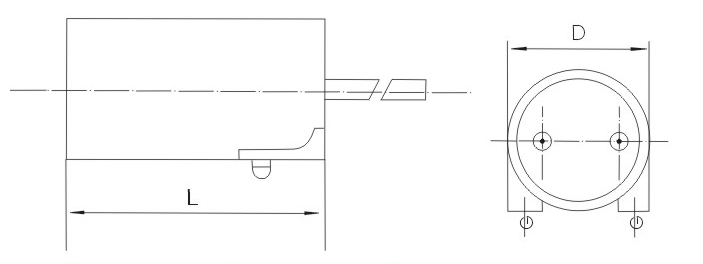

Diameter(Ømm)
Length(mm)
外壳
3
250
50-60
25
60
塑料
4
250
50-60
25
60
塑料
5
250
50-60
25
60
塑料
6
250
50-60
25
60
塑料
8
250
50-60
25
60
塑料
10
250
50-60
30
60
塑料
12
250
50-60
30
60
塑料
16
250
50-60
30
60
塑料
Applications:Power factor correction of transformers and magnetic ballasts in discharge lamps like fluorescent lamps, high pressure sodium vapor lamps,high pressure mercury vapor lamps,and metal halide lamps,etc.
