CBB80A01


Advantages:Very small dissipation factor, small volume, light weight, small inherent temperature rise, excellent self-healing stability, safety and high reliability.It is safe because the capacitor is installed with discharge resistor and temperature fuze.


Applications:Power factor correction of transformers and magnetic ballasts in discharge lamps like fluorescent lamps, high pressure sodium vapor lamps,high pressure mercury vapor lamps,and metal halide lamps,etc.

Product Model: CBB80C
Product Name: Lighting capacitor CBB80C01

Description:



Model reference:CBB80C
Rated Voltage:250Vac
Rated Frequency:50/60Hz
Rated Capacitance:3μF to 60μF
Capacitance tolerance:+/-10% or +/-5% (upon request.)
Rated Min.&Max. temperatures: -40~+85 degrees
Climatic category:40/85/21
Protection Degree:P0
Dissipation Factor:less than 0.002 at 50Hz,20 degrees
Test Voltage between terminals:2Un,60sec
Test Voltage between terminals and case: 2KV,60sec
Reference Standard: EN61048,EN61049
Case type: Plastic case
Terminals:4-way quick connector
Fixing: M8 metal stud

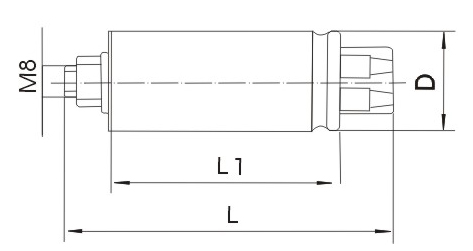

Capacitance(μF)

Rated voltage(V)
Frequency(Hz)
Diameter(Ømm)
Length(mm) 外壳
Case
L1 L
3~8.5 250 50-60 30 70 90
9~12 250 50-60 35 70 90
13~20 250 50-60 40 70 90
21~28 250 50-60 42 70 90
29~35 250 50-60 45 70 90
36~44 250 50-60 45 70 90
45~50 250 50-60 50 70 90
51~60 250 50-60 50 80 100
